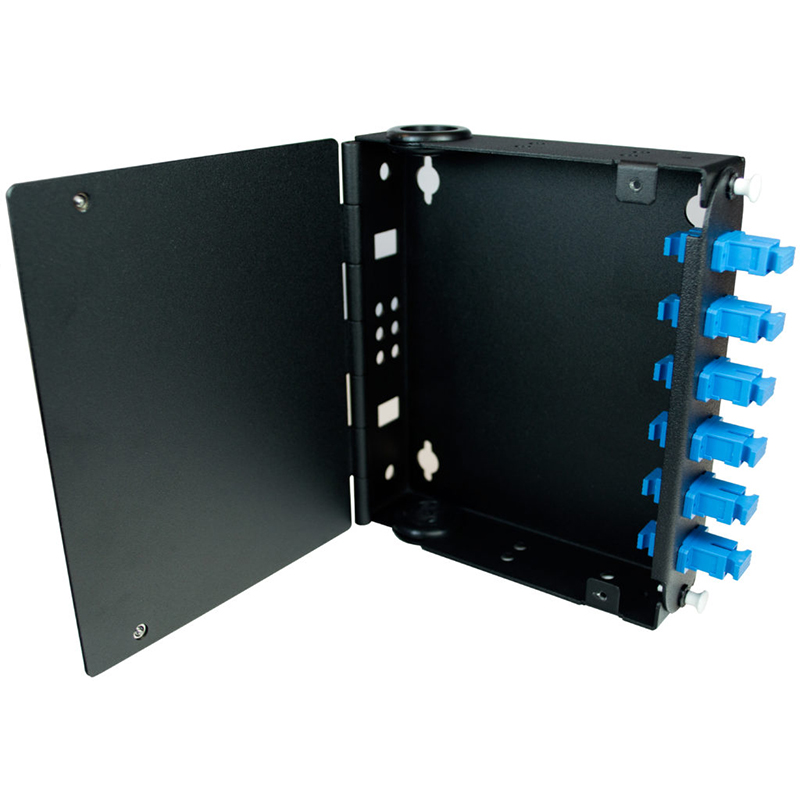

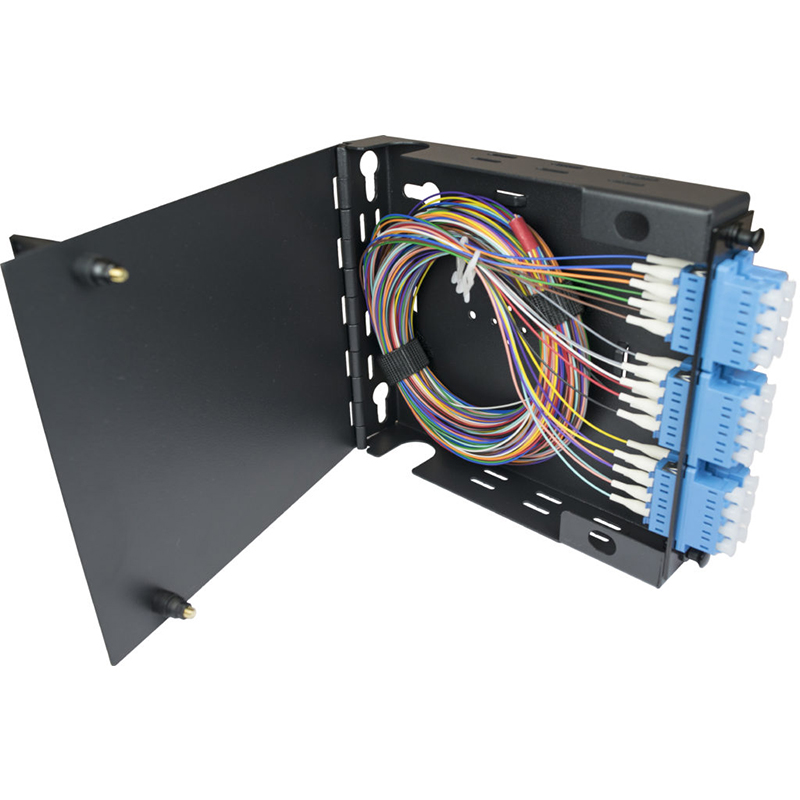

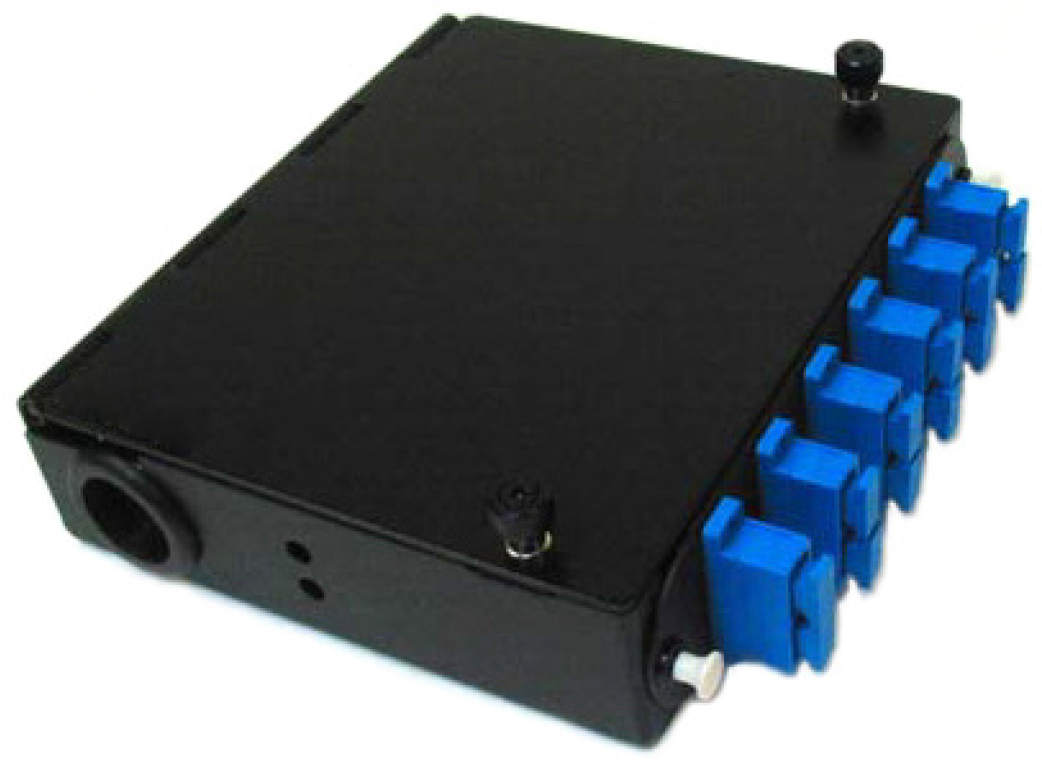

Mini Wallmount Series

The Mini Wallmount series fiber patch & splice enclosure can patch & splice up to 24 fibers LC and 12 fibers SC in Singlemode or Multimode configurations.

These compact sized enclosures can be supplied fully loaded with adapter panels, pigtails, a splice sleeve holder, and a pre-terminated stub cable or as a plug and

play module with an MPO adapter or pigtails. 100% tested for insertion and return loss. Available in CCH or LGX size formats. The CCH format supports MPO adapters on the rear of

the enclosure for plug and play support.

Features

• Simply loosen the thumbscrews (CCH) or flip the latches (LGX) and open the door to gain access to the internal components

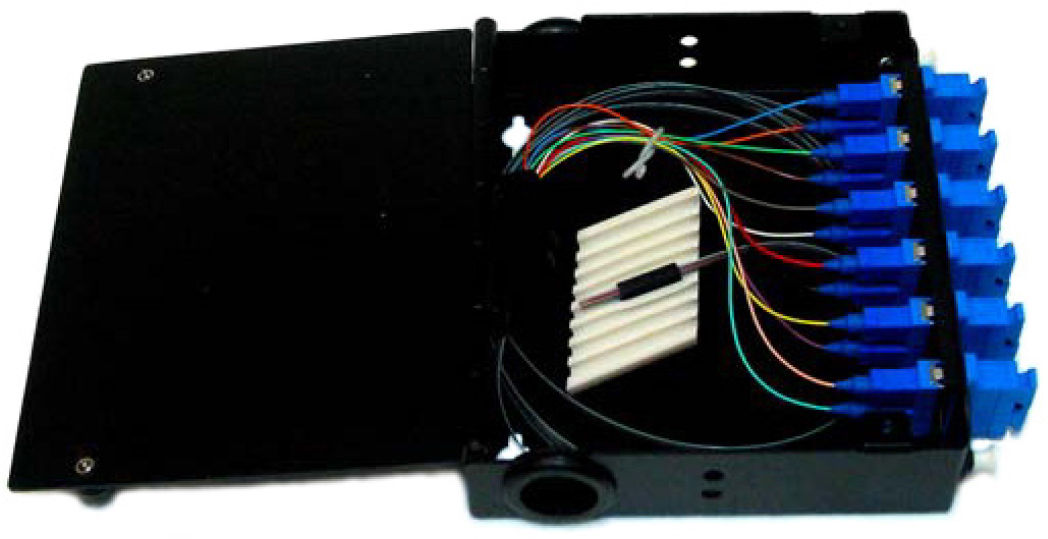

• Enclosures can be pre-terminated for patching only or supplied with a splice chip for patching and splicing capability

• Enclosures are wall mountable and are also rack mountable with optional rackmount brackets

• DIN rail and magnetic mounting options are available

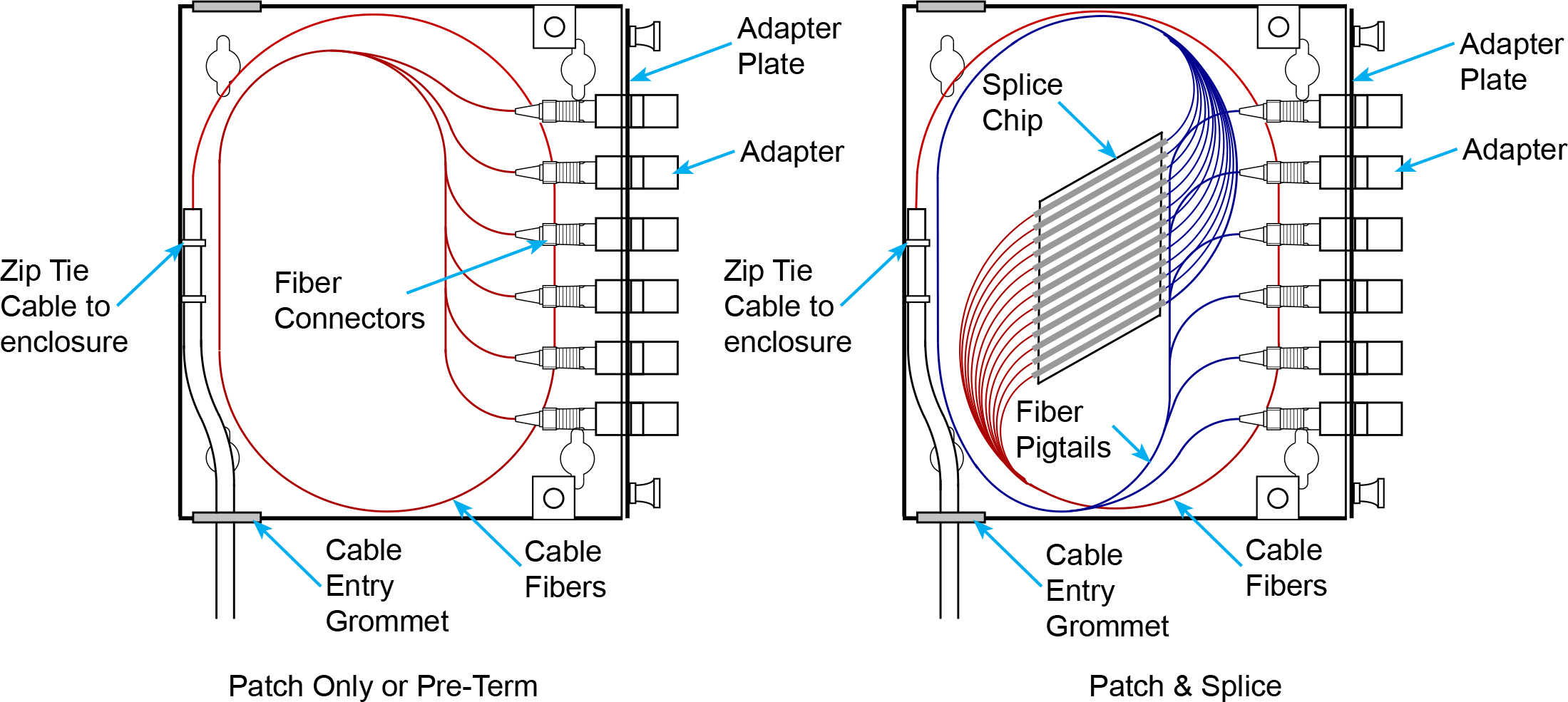

Component Layout

LGX Format

Specifications

CCH Format

Specifications

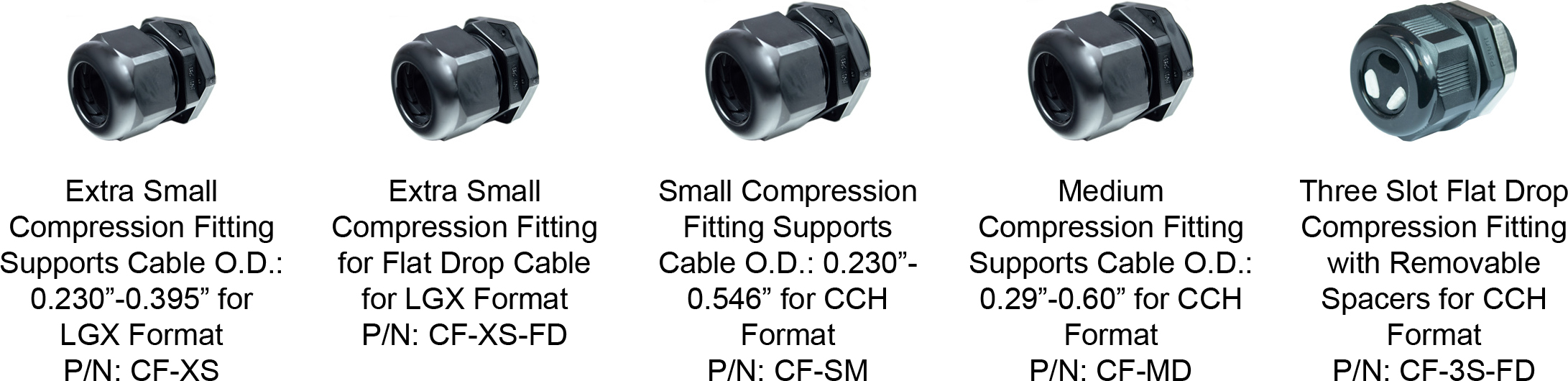

Accessories

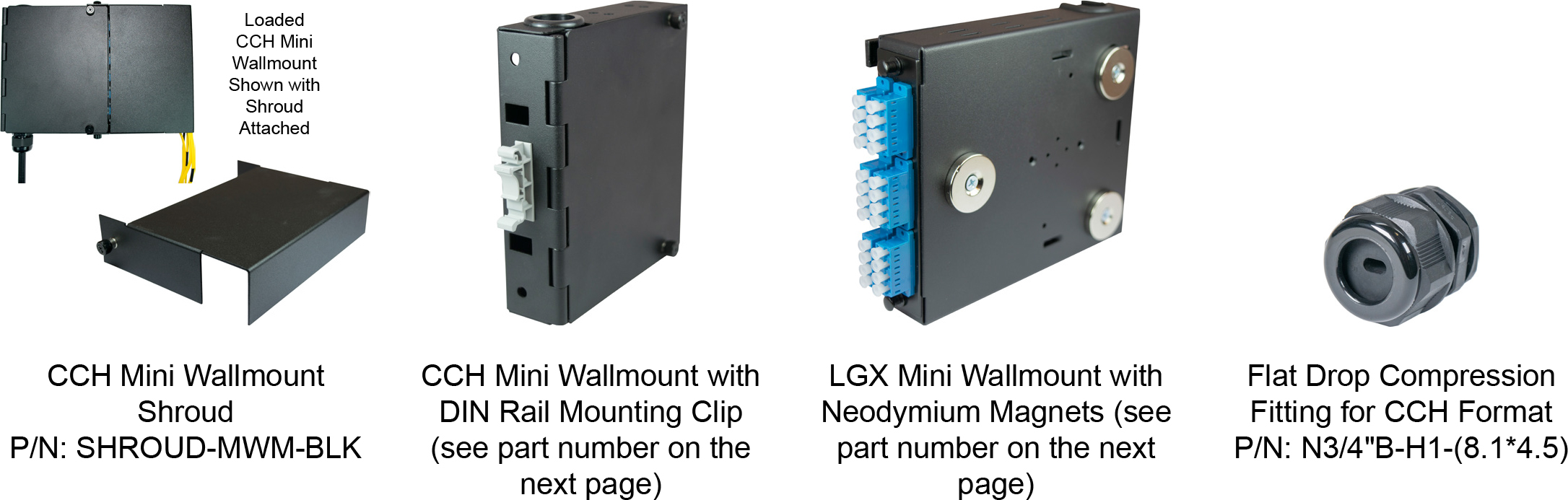

Accessories (Continued)
