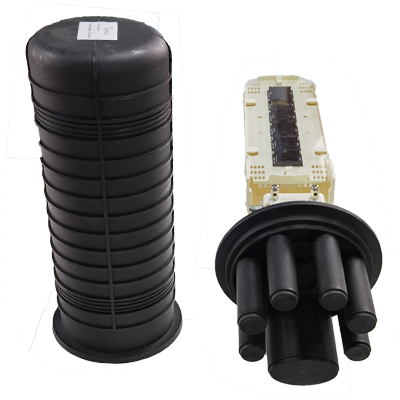

Product Features:
1.1 The closure can be used in duct, buried, overhead.etc
1.2 High quality impact material-pp and internal is ABS
1.3 Designed for FTTH with adapter if need.
1.4 Fiber storage with big basket
1.5 Modular fiber management system
1.6 Cable Diameter range: 6ports-26mm 1 oval port- 80x60mm
1.7 Sealing way of cables: heatshink seal cable port + mechanical shell.
1.8 Quality warranty: 2 years
1.9 Life Span: more than 25 years
1.10 IP rating is IP68
Communications industry of The People's Republic of China: YD/T 814-2004
Product Specification:
| Enclosure Model | Enclosure-05B |
| One splice tray | 24 fiber |
| Max splice trays | 9 or 12 tray |
| Tray size | 230x107x10 |
| Capacity | 216 or 288 core |
| Weight(kg) | 5kg |
| Environment Temperature | -40℃~+70℃ |
| Atmospheric Pressure | 70kPa~106kPa |
| Insulation Resistance | ≥2×104MΩ |
Dimension of the Enclosure：
| Model | Inlets/ Outlets | Closure Inner Diameter Minimum (mm) | Closure Diameter Maximum (mm) | Length (mm) | Cable Diameter Max(mm) | Oval Inner Port Min. (mm) |
| 05B | 6+1 | 180 | 200 | 505 | 26 | 74x54(out80x60) |
Material:
High strength polypropylene(PP) and ABS, which can assure any items of physical performance is excellent.
Remark: on one oval port， it can be suit for 2 cables, out diameter 80x60.The oval port can be used for
inline splice.
Ordering Information:
| Model Number | Carton Size | Quantity per Carton | Weight |
| 05B-216 core | 600x500x650 | 6pcs | 30 kgs |
| 05B-288 core | 600x500x650 | 6pcs | 30 kgs |
