CNCompact Cassette Enclosure (CCE)
The Compact Cassette Enclosure (CCE) is a small plastic enclosure with support for 2 LGX cassettes orcustom high density cassettes.Optional mounting system available for Aluminum J Box enclosures.
The Compact Cassette Enclosure (CCE) is a small plastic enclosure with support for 2 LGX cassettes orcustom high density cassettes.Optional mounting system available for Aluminum J Box enclosures.
The Compact Cassette Enclosure (CCE) is a small plastic enclosure with support for 2 LGX cassettes or
custom high density cassettes.
Optional mounting system available for Aluminum J Box enclosures.

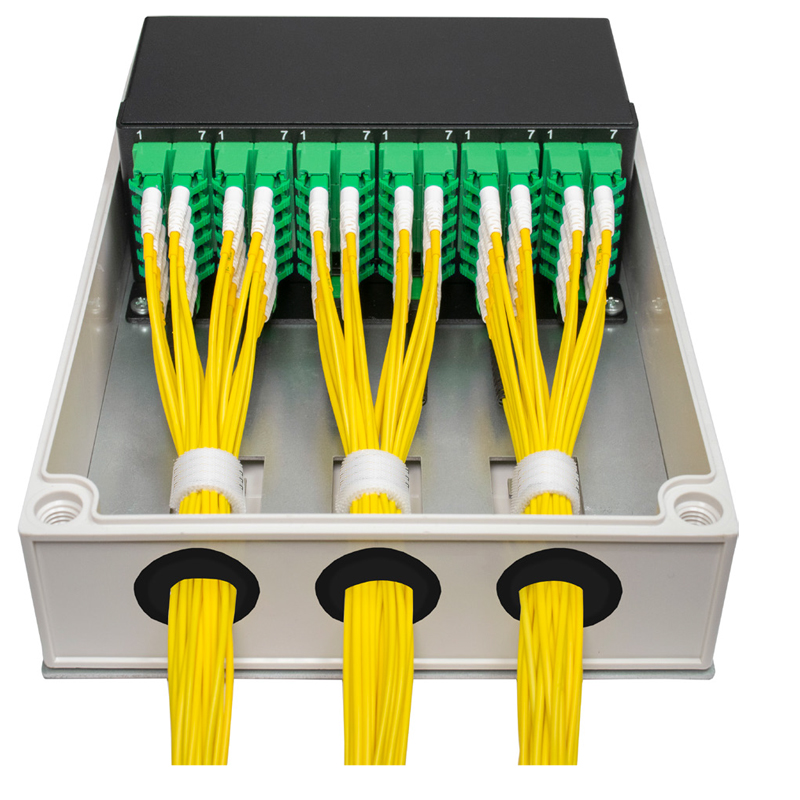

The enclosure supports cable entry via three 1.1” grommeted openings.
The IP67 capable enclosure is made of UL94HB rated ABS.
IP67 Capable*
*Requires the use of compression fittings and/or plugs instead of grommets Solid Particle Protection IP First Digit Rating Level: 6
Totally protected against dust ingress (dust-tight).
Liquid Ingress Protection IP Second Digit Rating Level: 7
Protected from water ingress while immersed in shallow water.
*Requires the use of compression fittings and/or plugs instead of grommets

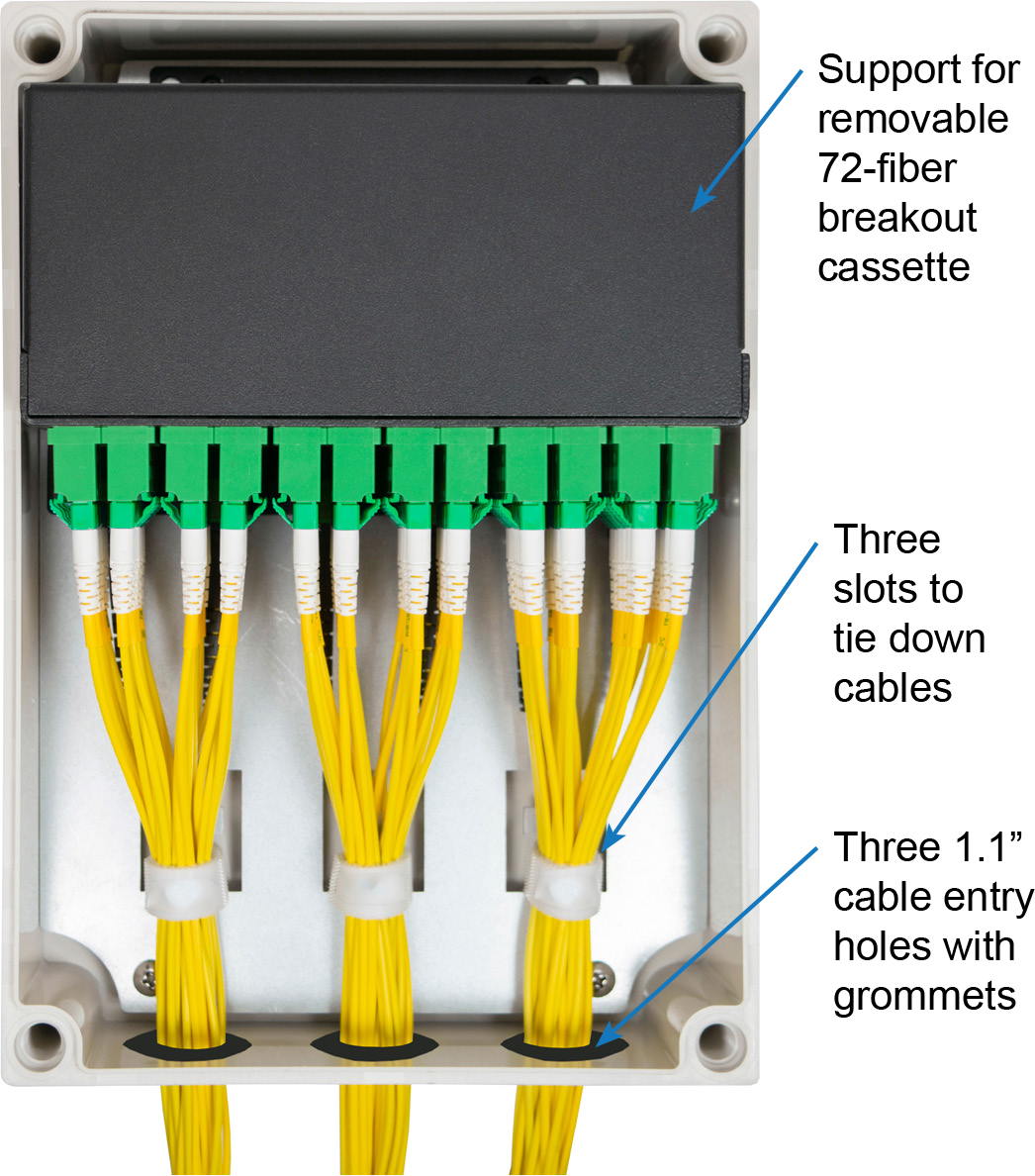

Top View
Features
• Gasketed door accessible with captive quarter turn fasteners that will not fall out when released
• 36-fiber and 72-fiber breakout cassettes available with port silkscreen identification
• Flame resistant ABS material
• Support for compression fittings and plugs
• Tie down points provide cable management
Specifications
| Dimensions (HxWxD) | 10.0" x 7.1” x 3.0” |
| Breakout Fiber Capacity | 24 SC or 72 LC |
| LGX Cassette Capacity | 2 |
| 1.1” Cable Entry Holes | 3 |
| Material | UL94HB Rated ABS |
| Material Finish | Light Gray |
| Weight (lbs) | 7.5 |

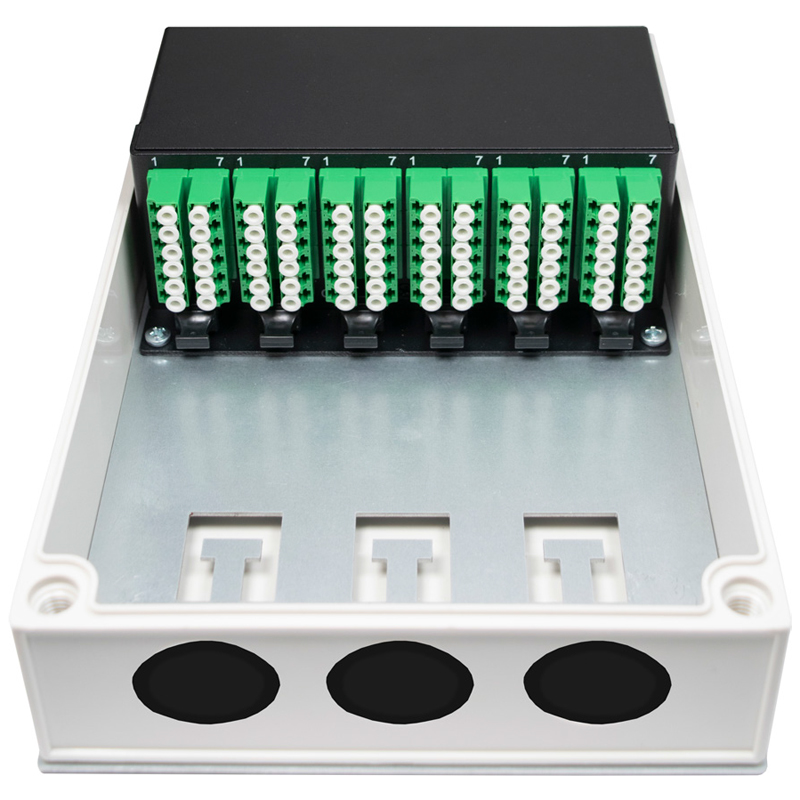

Front View

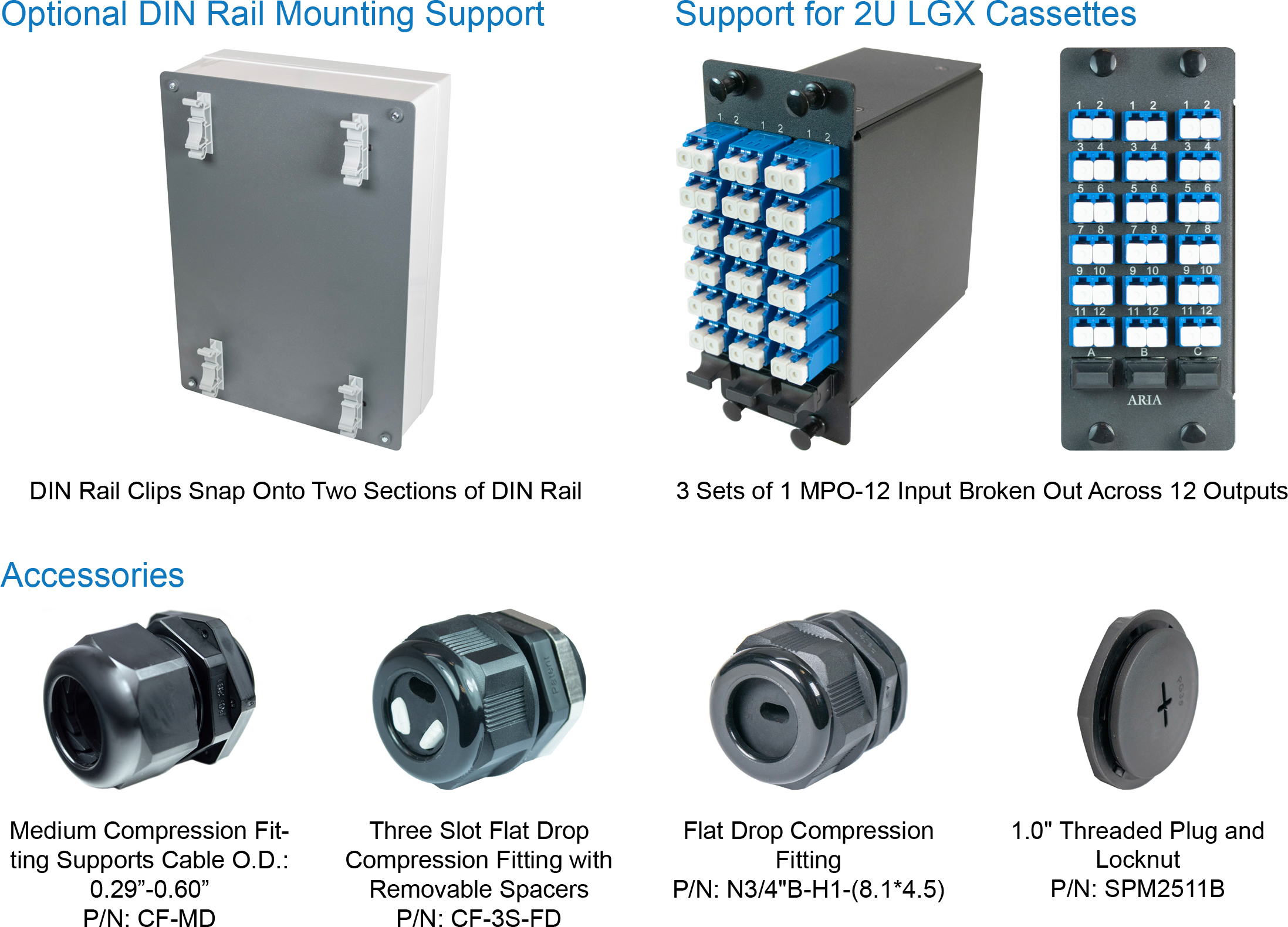

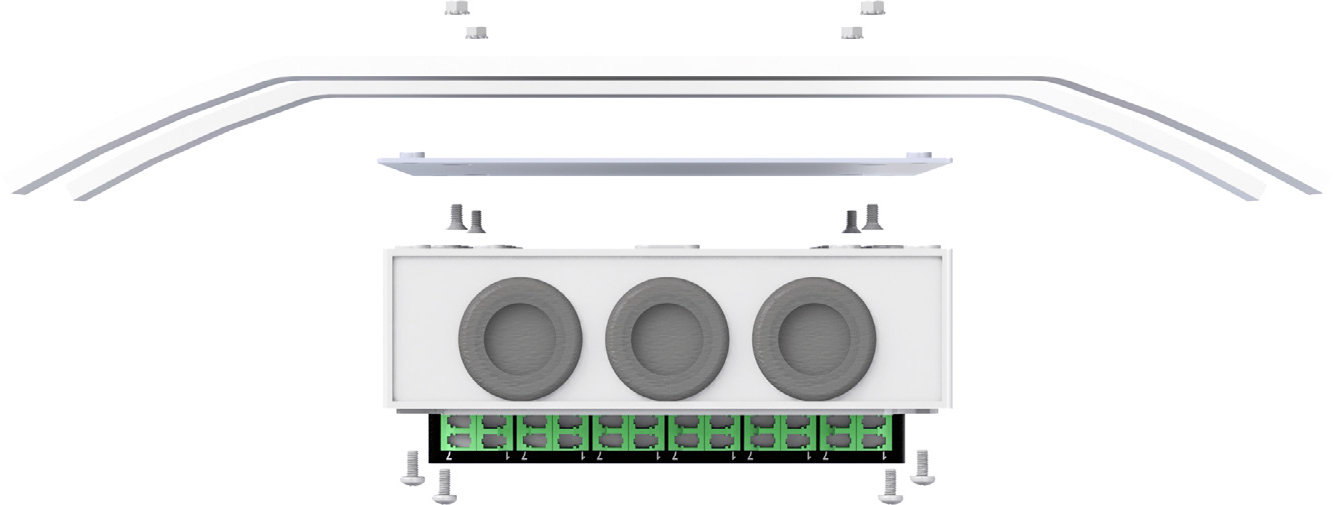

Optional J-Box Mounting Support
PTFE sheet stock attaches to an external mounting plate which then mounts to the back of the plastic enclosure.

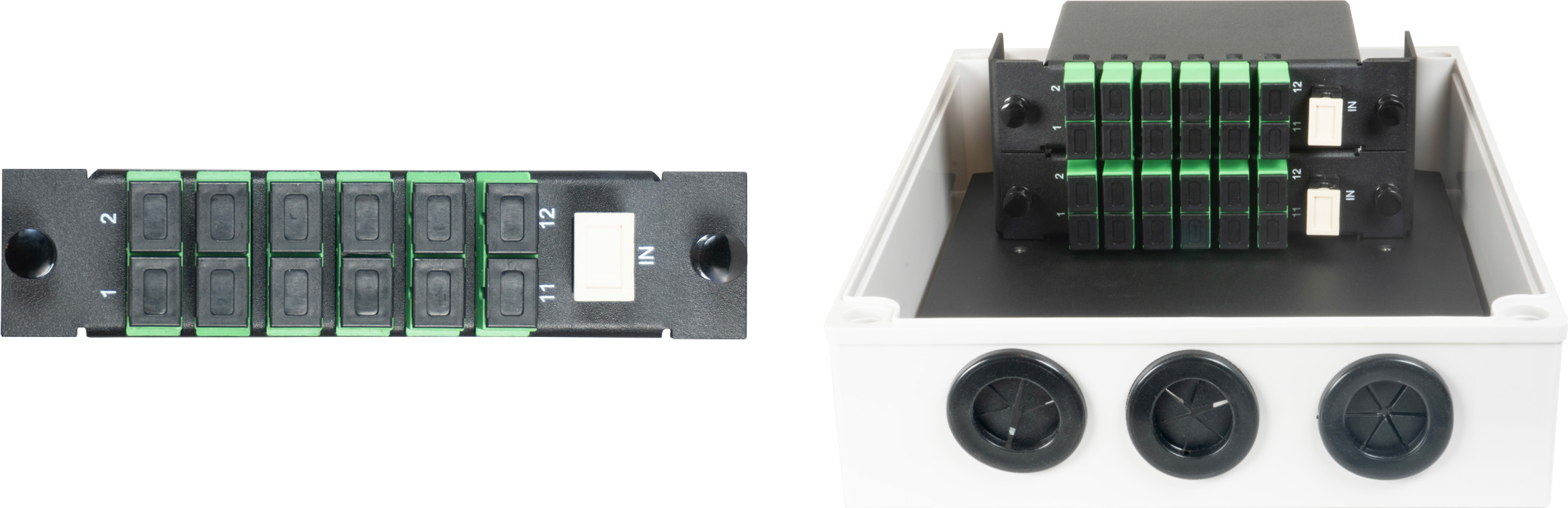

Example Cassette: 1 MPO-12 Input Broken Out Across 12 SC/APC Outputs
