CNCVWM 4X

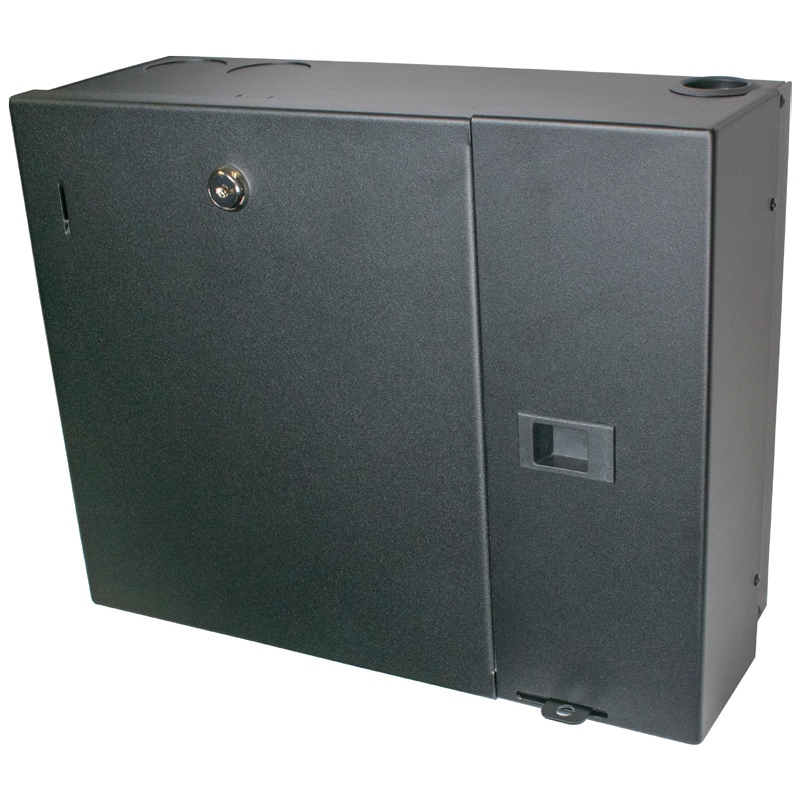

The CVWM 4X is a compact wall mount fiber optic distribution enclosure designed to support patching and/or splicing.
The CVWM 4X is a compact wall mount fiber optic distribution enclosure designed to support patching and/or splicing.
Overview
The CVWM 4X is a compact wall mount fiber optic distribution enclosure designed to support patching and/
or splicing.
The unit has the capacity to accept 4 LGX-type adapter plates allowing for the termination of a variety of connector types and fiber counts of up to 48 SC or 96 LC.

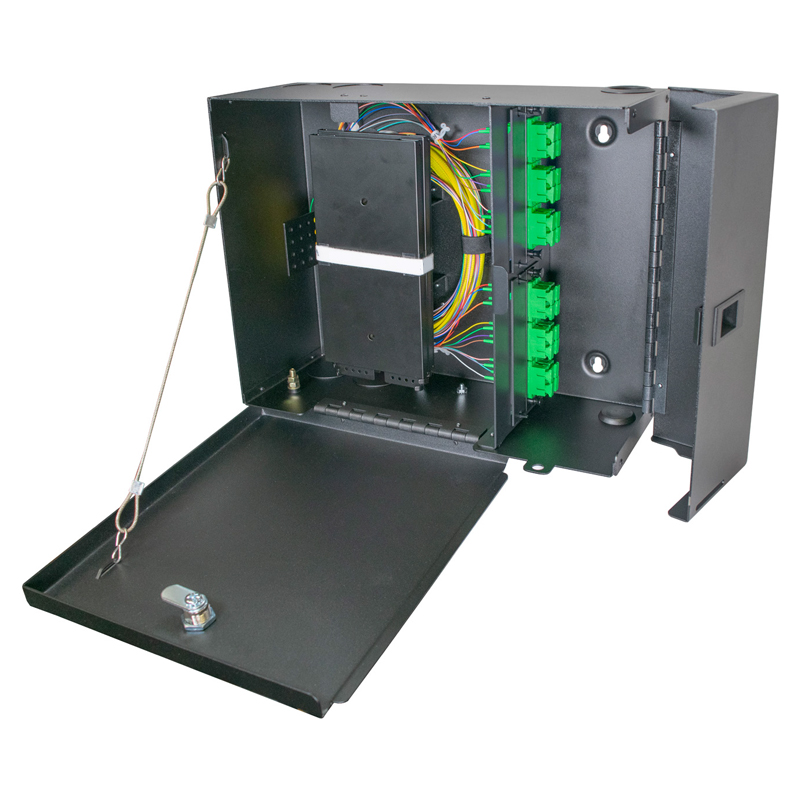

The unit has a key-lockable drop-down-door splice compartment which serves as a work shelf for splicing.
The patch side door comes equipped with a padlock hasp for additional security.
Specifications
| Dimensions (Inches) | 11.5 x 14.2 x 5.5 (HxWxD) |
| Adapter Plate Capacity | 4 |
| Fiber Capacity | 48 SC or 96 LC |
| Cable Entry Openings | Patch Side: (2) 1.25” Splice Side: (4) 1.75” |
| Material | 1.5mm Thick Steel |
| Material Finish | Black Powder Coat |
| Weight (Empty) (lbs) | 10.0 |

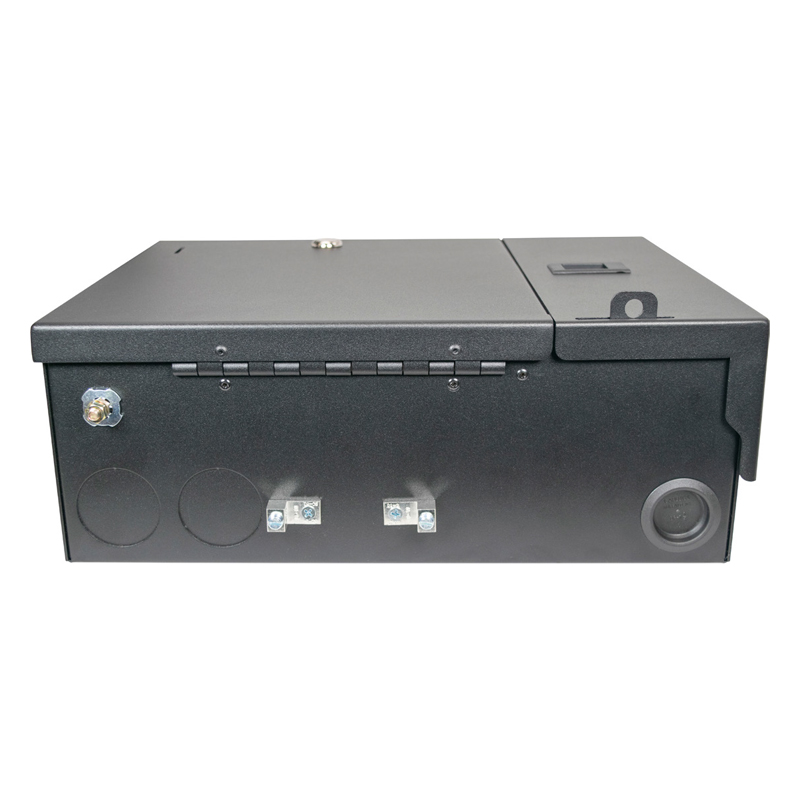

Cable Entry & Grounding
