CNAccess Terminal Box (ATB)
The Access Terminal Box (ATB) is a small, 2-fiber capacity, patch & splice wallmount enclosure.It is designed for indoor use next to an optical network terminal (ONT) in fiber to the home (FTTH).
The Access Terminal Box (ATB) is a small, 2-fiber capacity, patch & splice wallmount enclosure.It is designed for indoor use next to an optical network terminal (ONT) in fiber to the home (FTTH).
The Access Terminal Box (ATB) is a small, 2-fiber capacity, patch & splice wallmount enclosure.
It is designed for indoor use next to an optical network terminal (ONT) in fiber to the home (FTTH) applications.
Typically, an indoor drop cable from an Exterior Terminal Box (ETB) mounted on the outside of a subscriber's residence is brought into the ATB and spliced to a pigtail. A patch cord connects this pigtail to the ONT.
Versatile and economical design provides an easy to use and low cost enclosure.
Wallmounting hardware and splice sleeves are included.
Features
• Compact and space efficient design

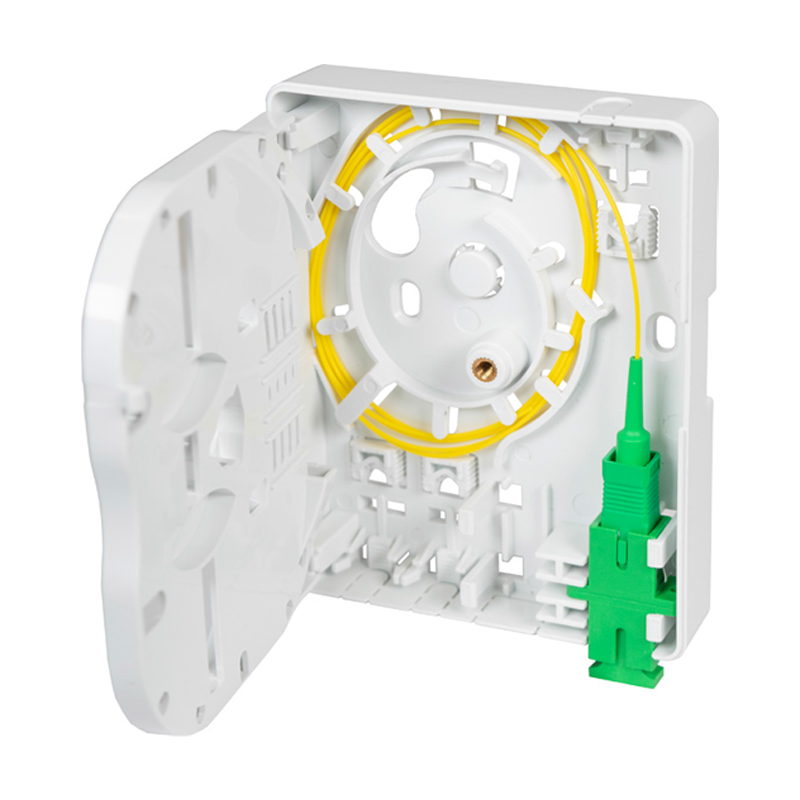

• Hinged removable splice tray
• 2-fiber capacity
• Tool-less lid with optional screw does not require external clearance for removal
• Dual covered and slotted cable entry openings
Specifications
| Dimensions (Inches) | 4.0 x 3.1 x 1.0 (HxWxD) |
| Fiber Capacity | 2 |
| Pigtail Fiber Type | Singlemode G.657.A1 |
| Cable Entry Openings | (2) 0.3” x 0.6" |
| Material | White ABS Plastic |
| Weight (Empty) (lbs) | 0.5 |

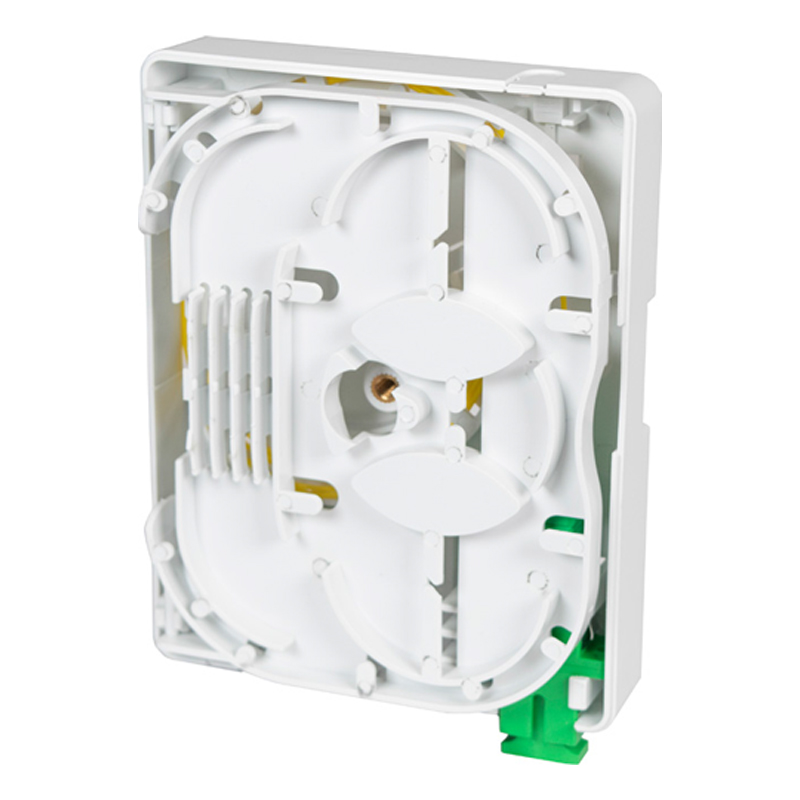

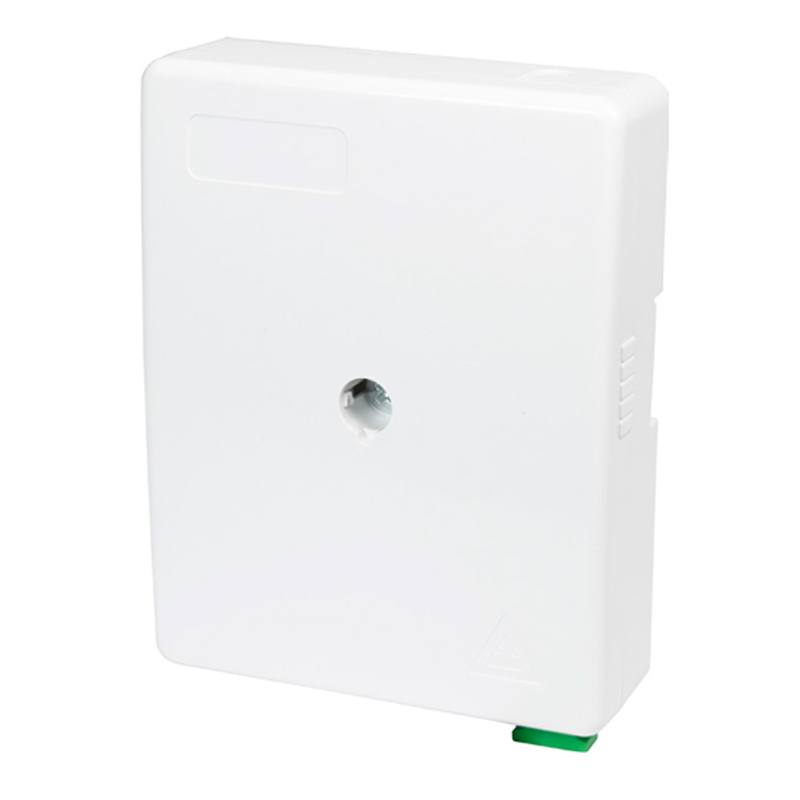

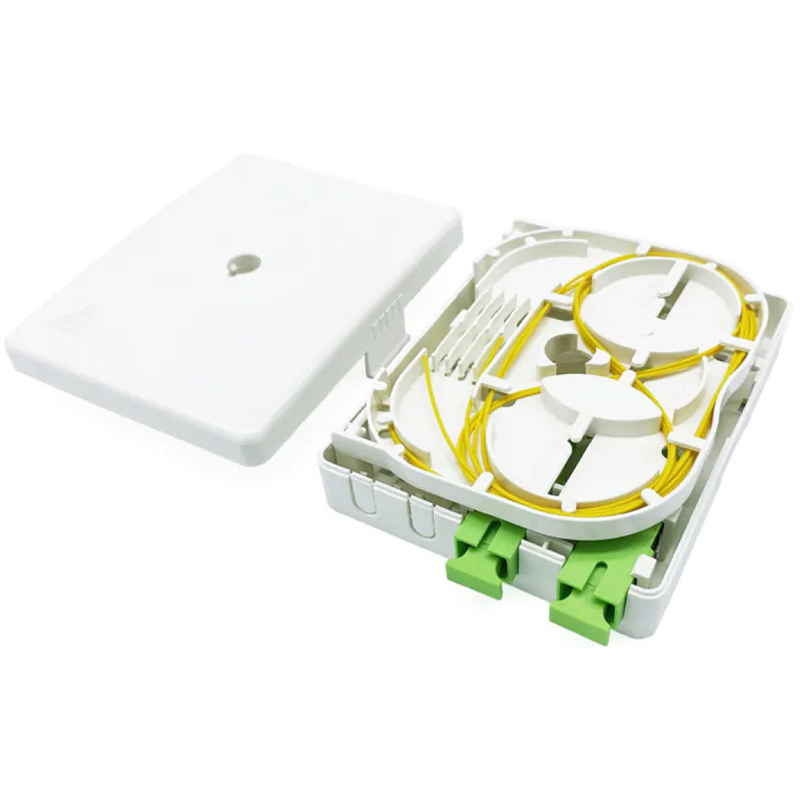

Views
