Product Overview

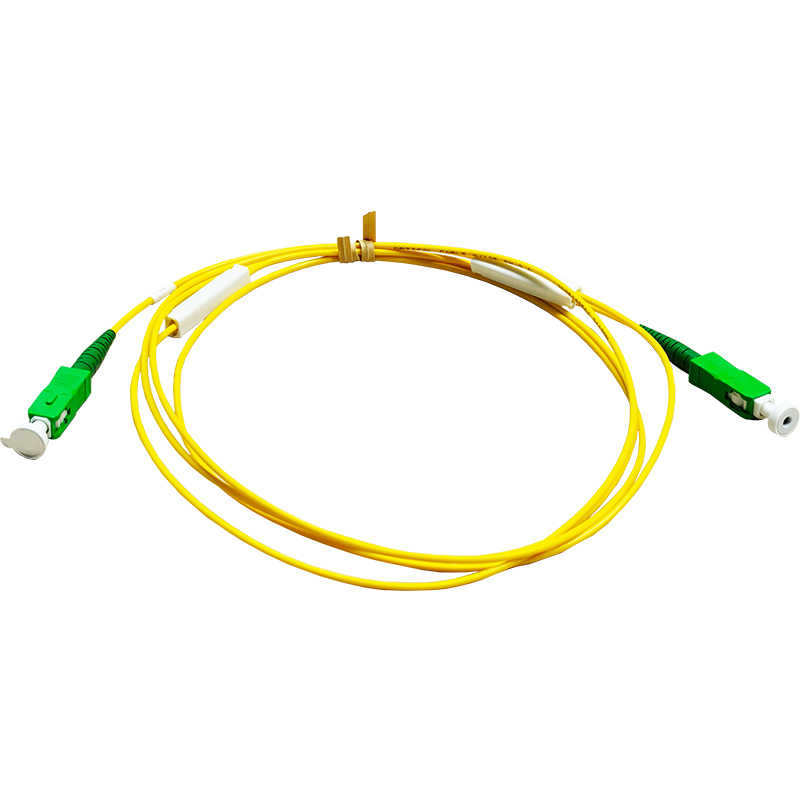

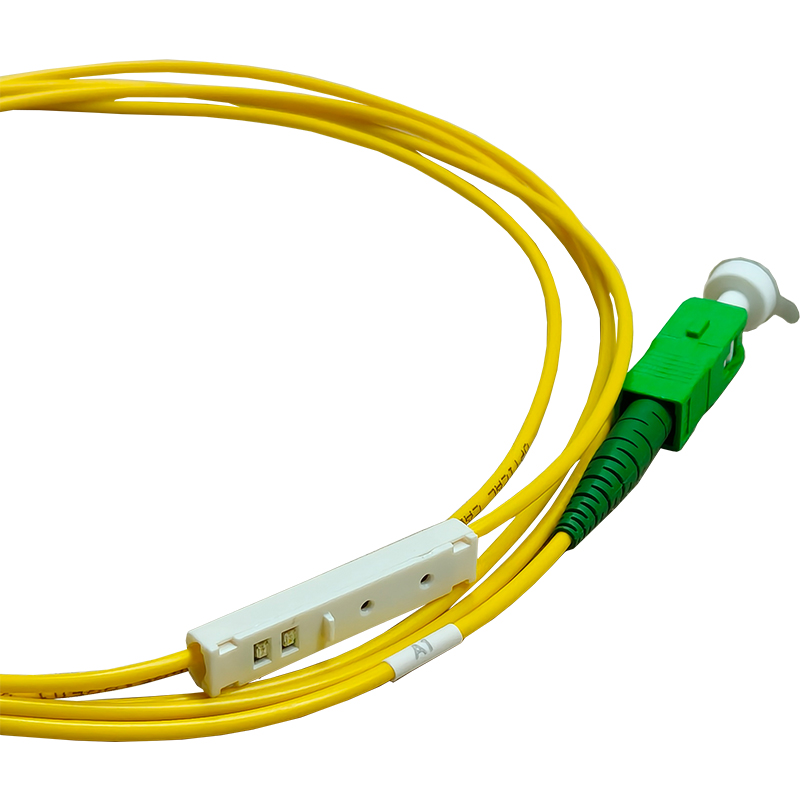

HTDFibercom Products presents an innovative solution for fiber patching. The traceable fiber patch cord is an effective solution for eliminating interconnect errors in dense interconnect environments. When the power source is connected to the traceable indicator on one end of the patch cord, the traceable indicator on the other end of the patch cord lights up, allowing identification of patches even in dense installations.
Confidential:Some of the more significant areas to use the traceable patch cord include data centers, central offices, mobile switching centers, telecommunication closets, active and passive fiber distribution hubs, and multidwelling units.
Optical specifications
| Parameters | Value |
| Typical Insertion Loss | ≤0. 20 dB |
| Max Insertion Loss | ≤0. 25 dB |
| Durability(500 Mating Times) | ▲I. L. ≤0. 25 dB |
| Return Loss(UPC) | ≥55 dB |
| Return Loss(APC) | ≥60 dB |
| Tensile Load | 7.0 kg |
| Operating Temperature | -20℃~ + 75℃ |
| Storage Temperature | -20℃~ + 75℃ |
Mechanical Diagram
| Material | 1 | Connector : SC,LC,FC,ST,E2000,MU |
| 2 | Label : A1,A2,B1,B2 | |
| 3 | Compact Traceable | |
| 4 | Cable Diameter: Duplex:1.2mm,1.6mm,2.0mm Simplex:1.2mm,1.6mm,2.0mm,3.0mm option. Fiber Type: SM:G652D,G657A1,G657A2,G657B3 MM:OM1,OM2,OM3,OM4,OM5 |

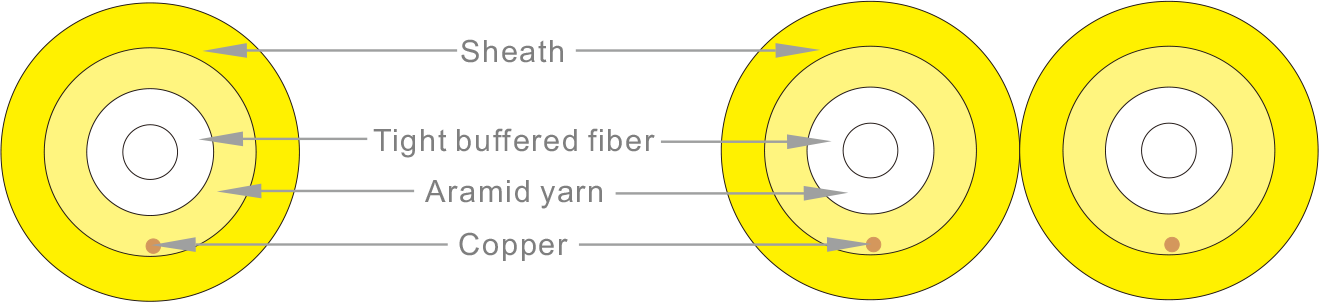

Cable Sructure

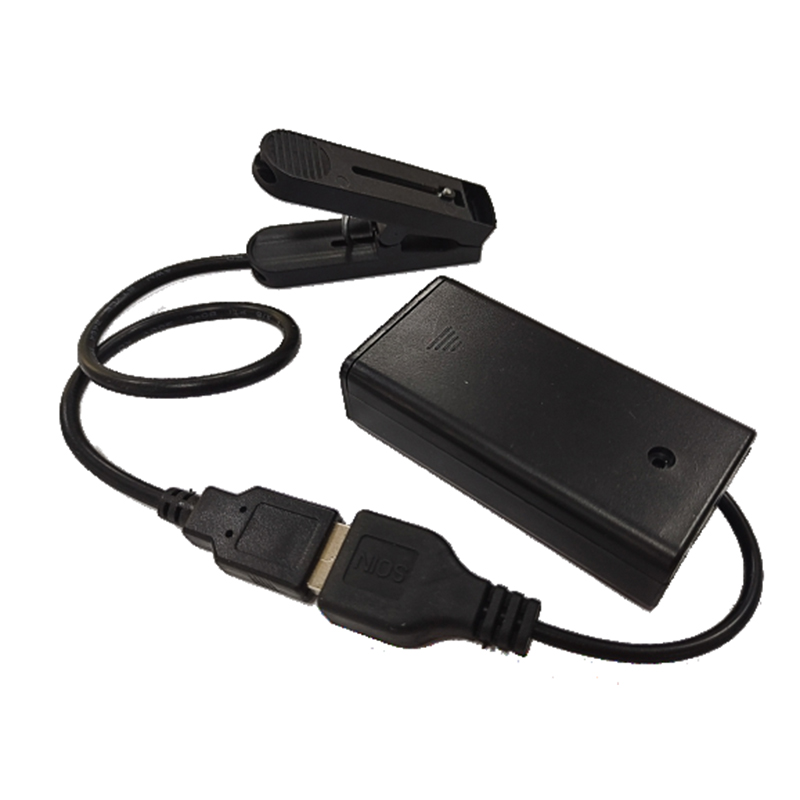

Accessory
Packaging,Labelling and shipping Marks
Individual PE bag packing and blister packing are available.
OEM design is also available upon request.
Other Requirements
RoHs-Compliance of item and package
Performance according to IEC
