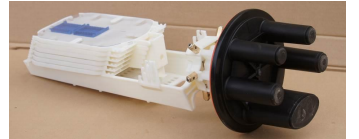

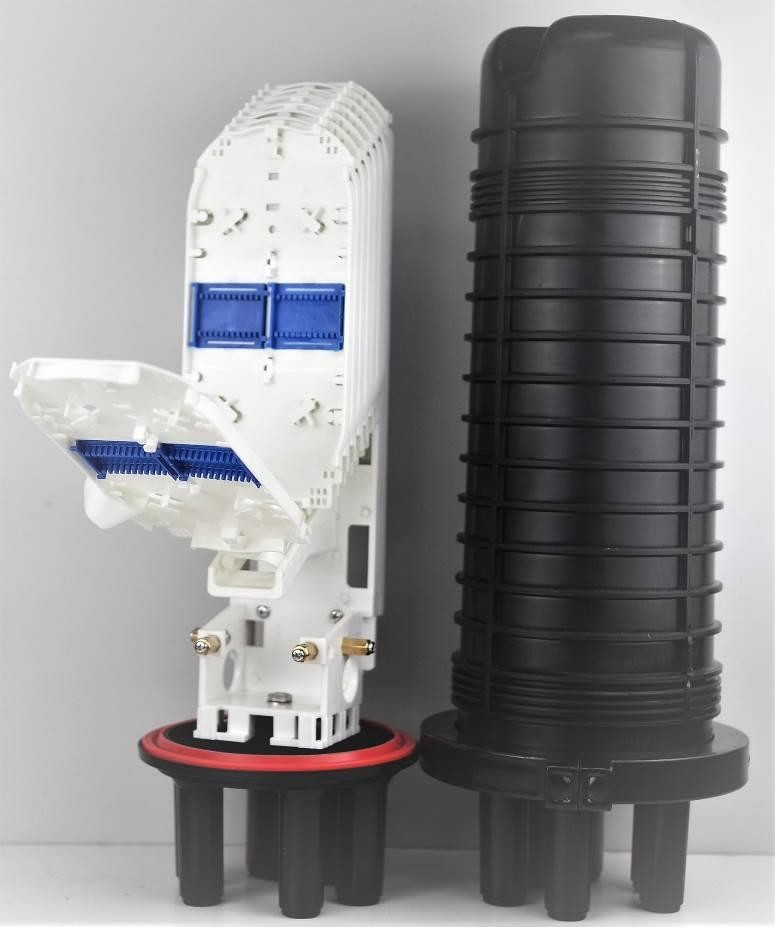

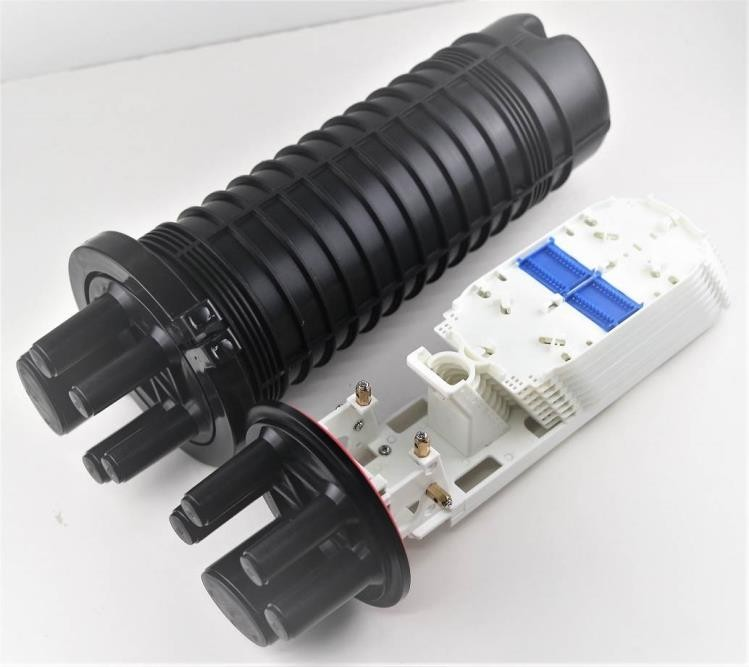

144 core Enclosure

 Product Features:

1.1    The closure can be used in duct, buried, overhead.etc

1.2    High quality impact material-pp and internal is ABS

1.3    Designed for FTTH with adapter if need.

1.4    Fiber storage with big basket

1.5    Modular fiber management system

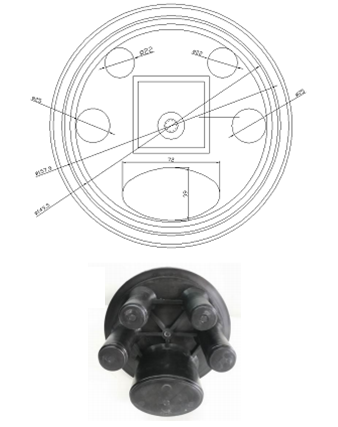

1.6    Cable Diameter range:  4ports-26mm  1 oval port- 80x60mm

1.7    Sealing :heatshrink cable (or Mechanical seaing by silicon rubber )

1.8    Quality warranty: 2 years

1.9    Life Span: more than 25 years

1.10  IP rating is IP68

Communications industry of The People's Republic of China: YD/T 814-2004

Product Specification:

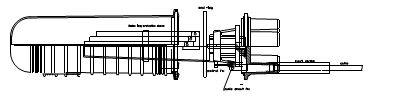

Dimension of the Enclosure：

Material:

High strength polypropylene(PP) and ABS, which can assure any items of physical performance is excellent.

Installation:

1.Cables Operation

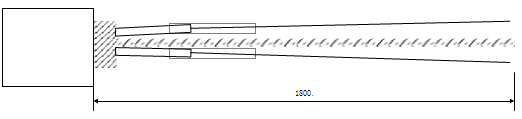

Marking the cutting point on the cable, the length about 1800mm. Remove the sheath of the cables from the marked point by stripper.

2.Fiber Optical Splice Closure Operation

Select the endcup port you want. Then open it by hasaw

Put the heartshrink Insert the prepared cables, and slid to the endcup of closure port

3.Mounted the cable at the end cup

Mounted cable at the endcup use clamp tired it

4.Splice Tray Operation

Put fiber tube into the tray. Use pvc tube protect it

5.Sealing Operation

Put the silicon rubber sealing ring to the endcup of Fiber Optic Splice Closure. Please keep rubber sealing ring clean

Put the dome cover to the endcup of Fiber Optic Splice Closure

Lastly, please lock the plastic hoop clamp

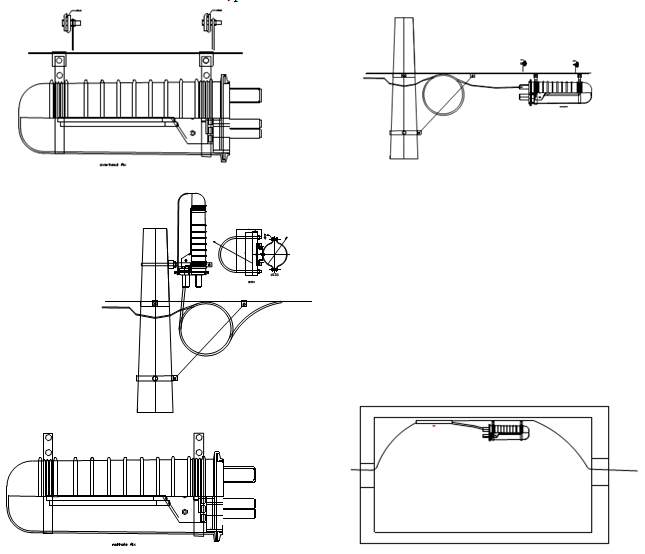

6.The mounting on the pole

01A Closure can be mount on the wall, pole and over head

Ordering Information:
